Depth : 30mm

Power rails: +12V, -12V

Power consumption: 40mA, 40mA

Made from collabolation with Z_Hyper.

Inspired from legendary Mutable Instruments Kinks and J.Haible ASR.

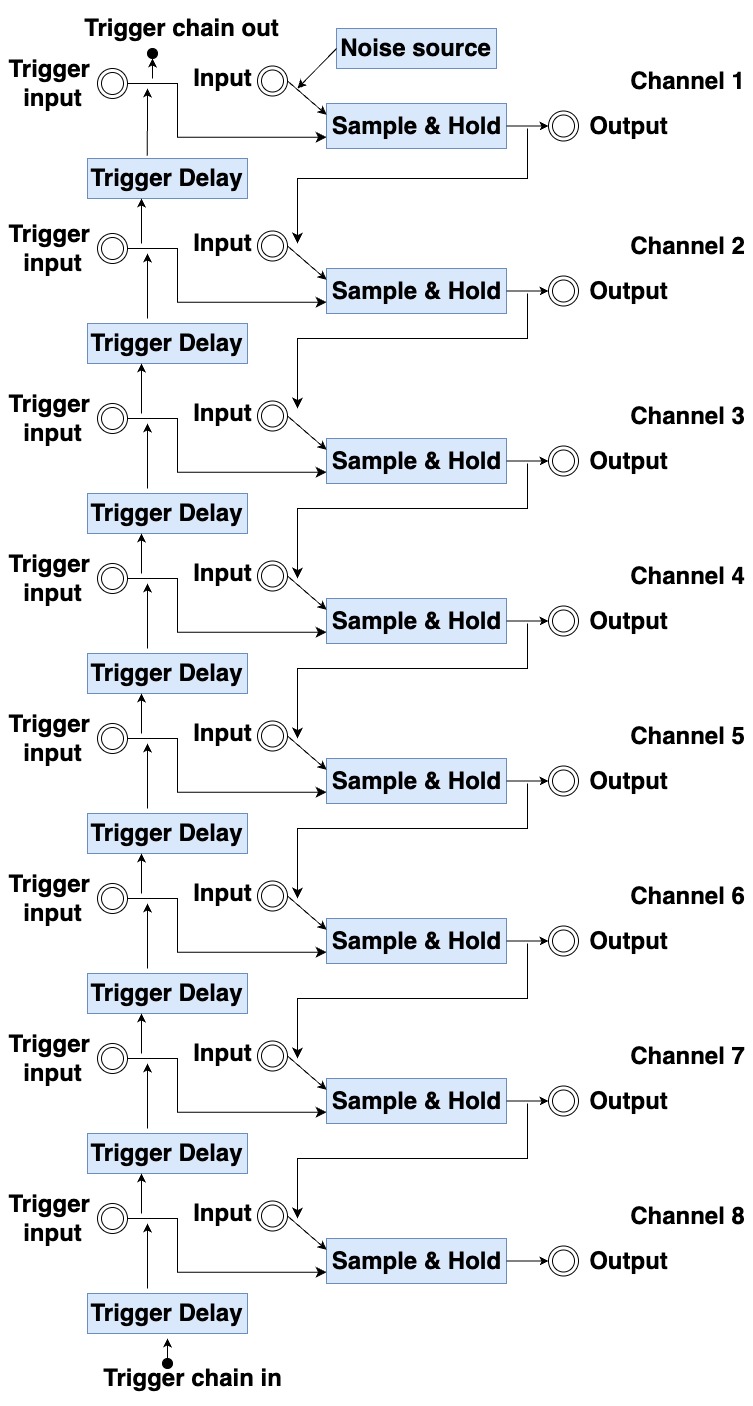

8 channel sample and hold (S&H) / analog shift register (ASR).

Noise source is normalized to channel 1 input.

ASR stages are configurable by patching.

For example, "8 stage ASR", "5 stage ASR + 3 stage ASR" etc.

Supports chaining multiple modules for more than 8 stages ASR.

For example, using two modules, "16 stage ASR", "5 stage ASR + 11 stage ASR" etc.

Notes:

The output voltage is slightly different from input voltage. This is normal behavior of analog S&H.

For precision voltage like pitch CV, you can use quantizer module for processing the output voltage.
