Depth : 35mm

Power rails: +12V, -12V

Power consumption: 10mA, 20mA

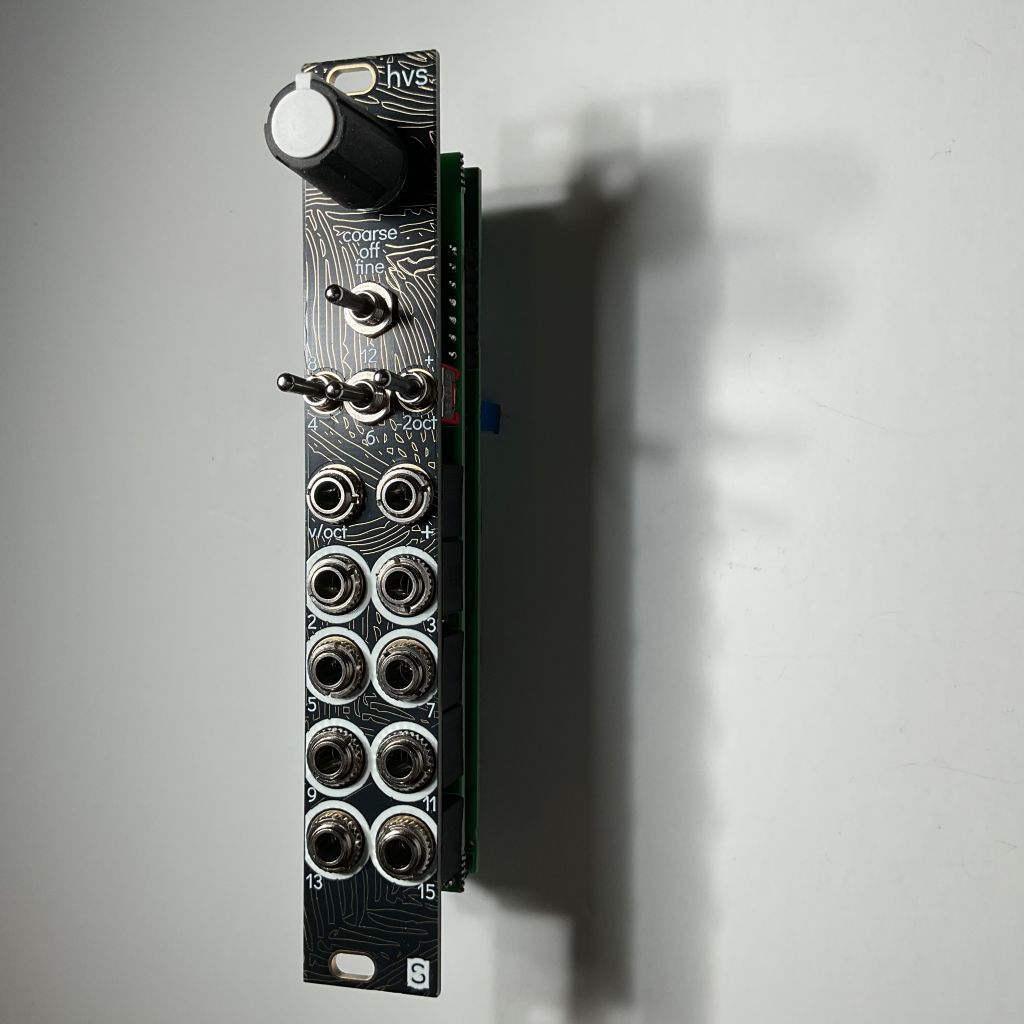

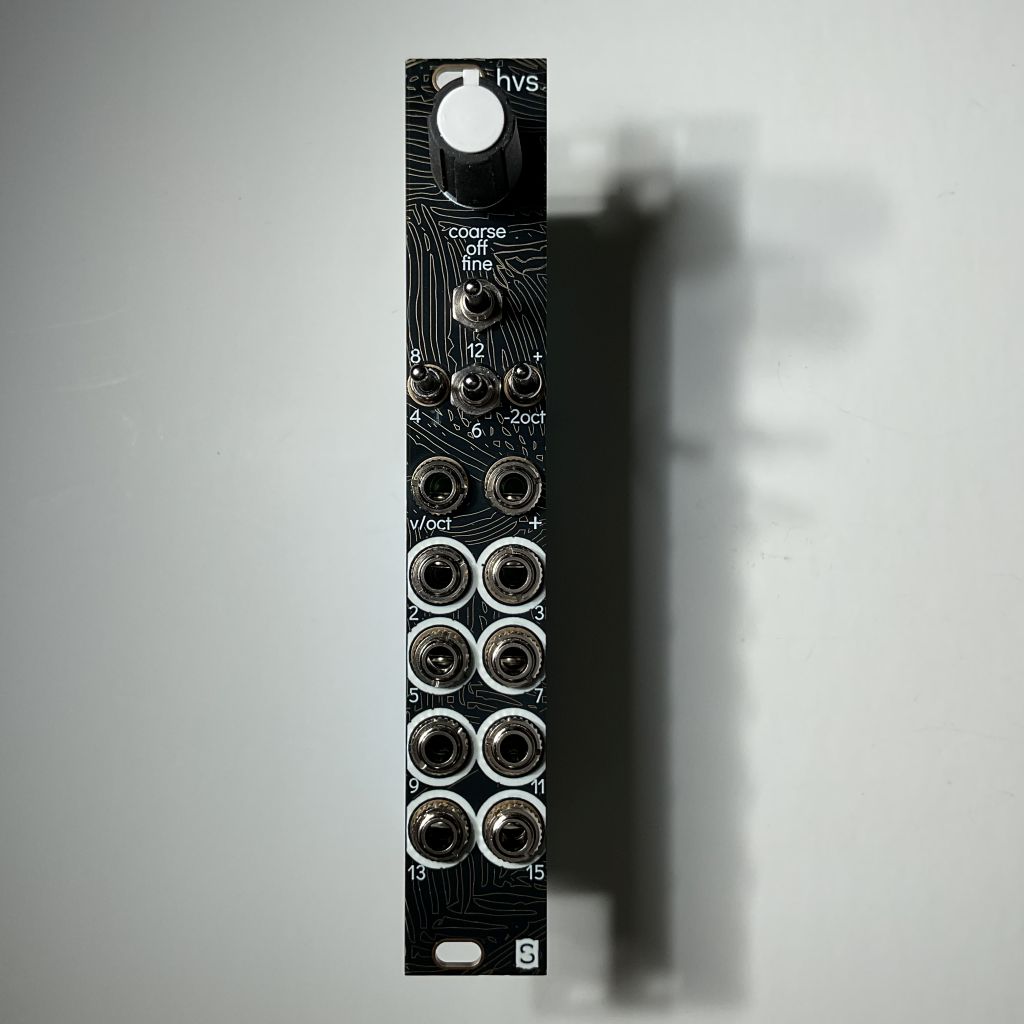

From v/oct cv input, output 8 overtones v/oct cv simultaneously.

We can patch our own harmonic oscillator by pairing with your favorite oscillators, vcas and mixer.

overtone output of x2, x3, x5, x7, x9, x11, x13, x15.

overtone select switch of x2, x4, x8.

overtone select switch of x3, x6, x12.

Additional output adjust knob with select switch of off, coarse, fine. (coarse adjust range is about 6 semi tones.)

Additional cv input to adjust with select switch of off, cv input, -2 oct. (when input positive voltage, output cv goes to lower.)
