dfom

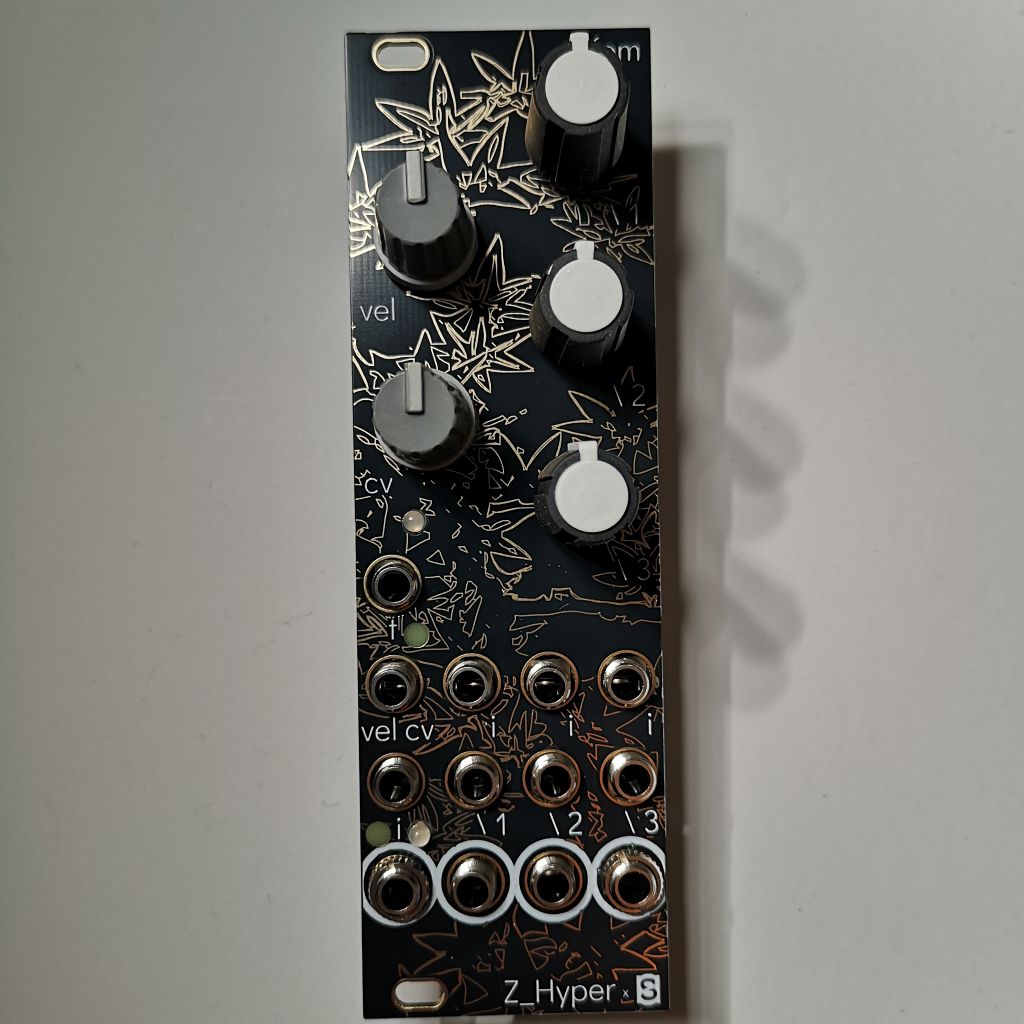

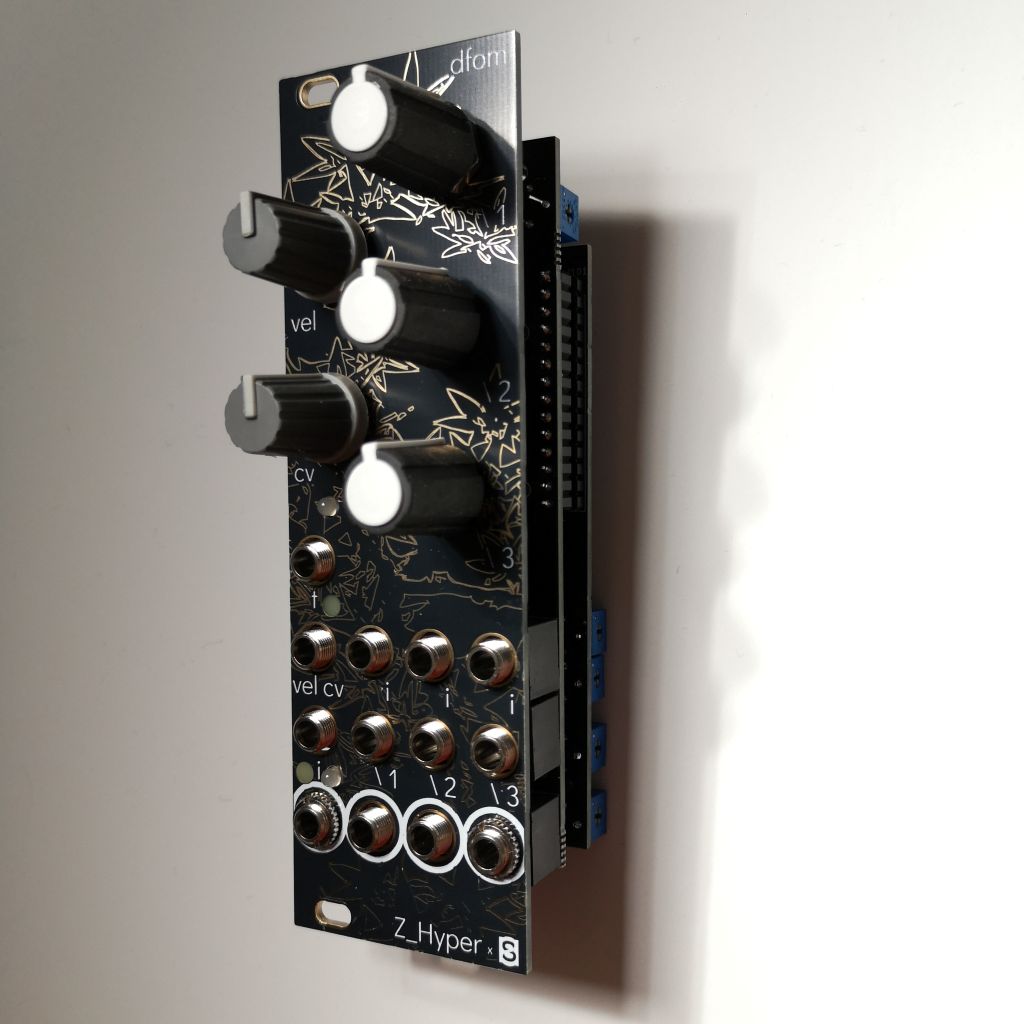

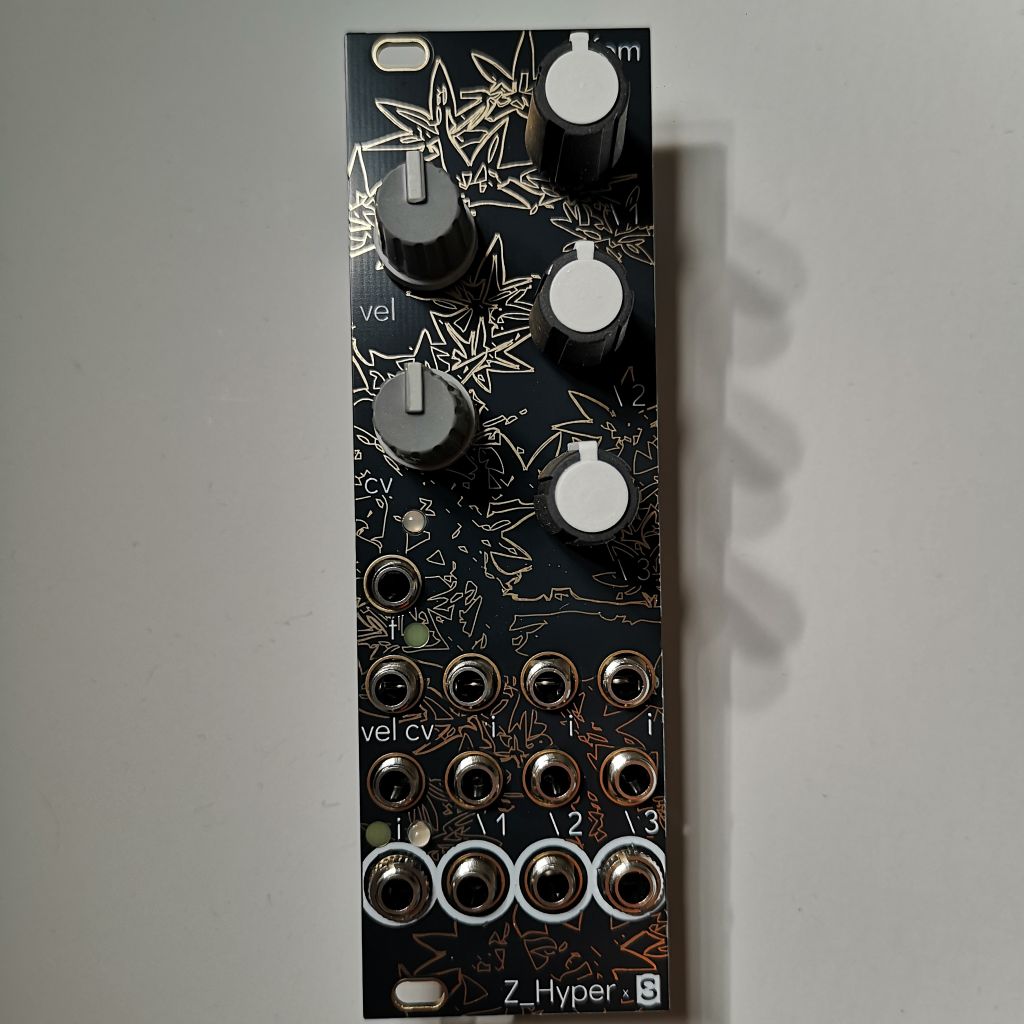

Eurorack 3U 8HP
Velocity sensitive triple envelope, vca
Available at Festival of Modular 2025 Tokyo 2025.11.23(Sun),24(Mon) @ ZAspace
Available at Festival of Modular 2025 Osaka 2025.11.29(Sat) @ Noon+Café
Depth : 30mm
Power rails: +12V, -12V
Power consumption: 50mA, 50mA
Made from collabolation with Z_Hyper.

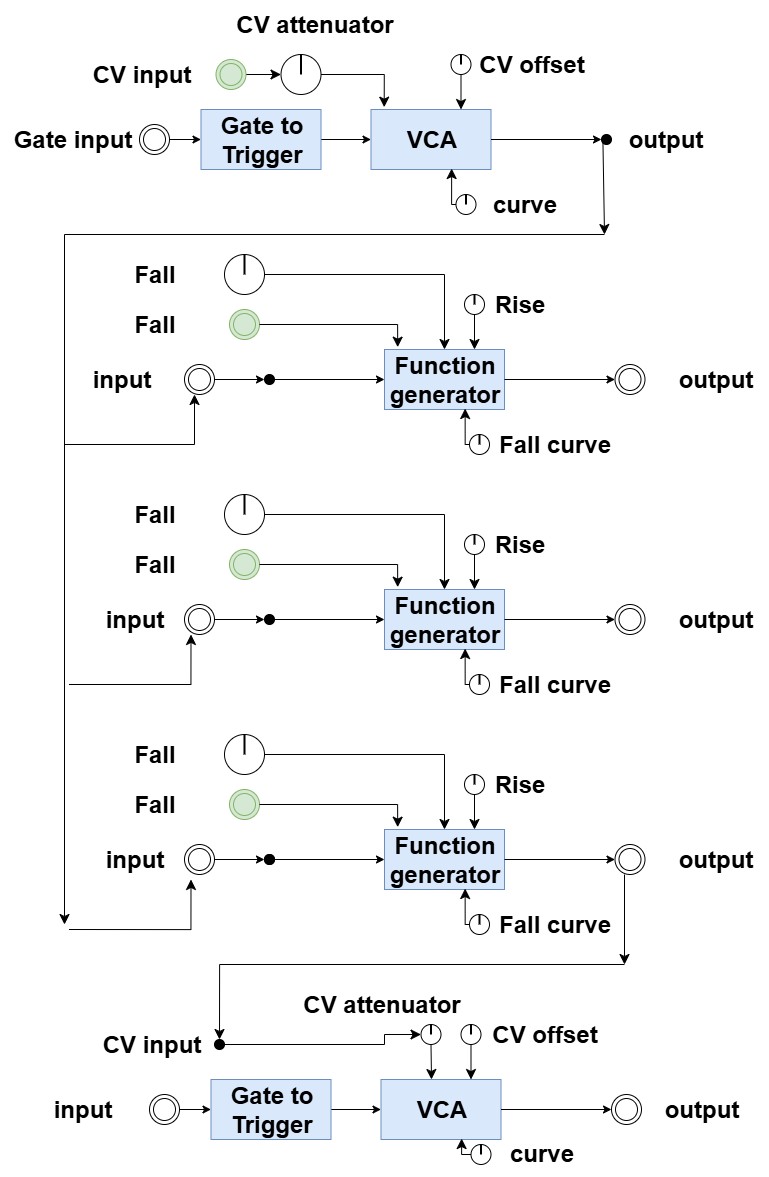

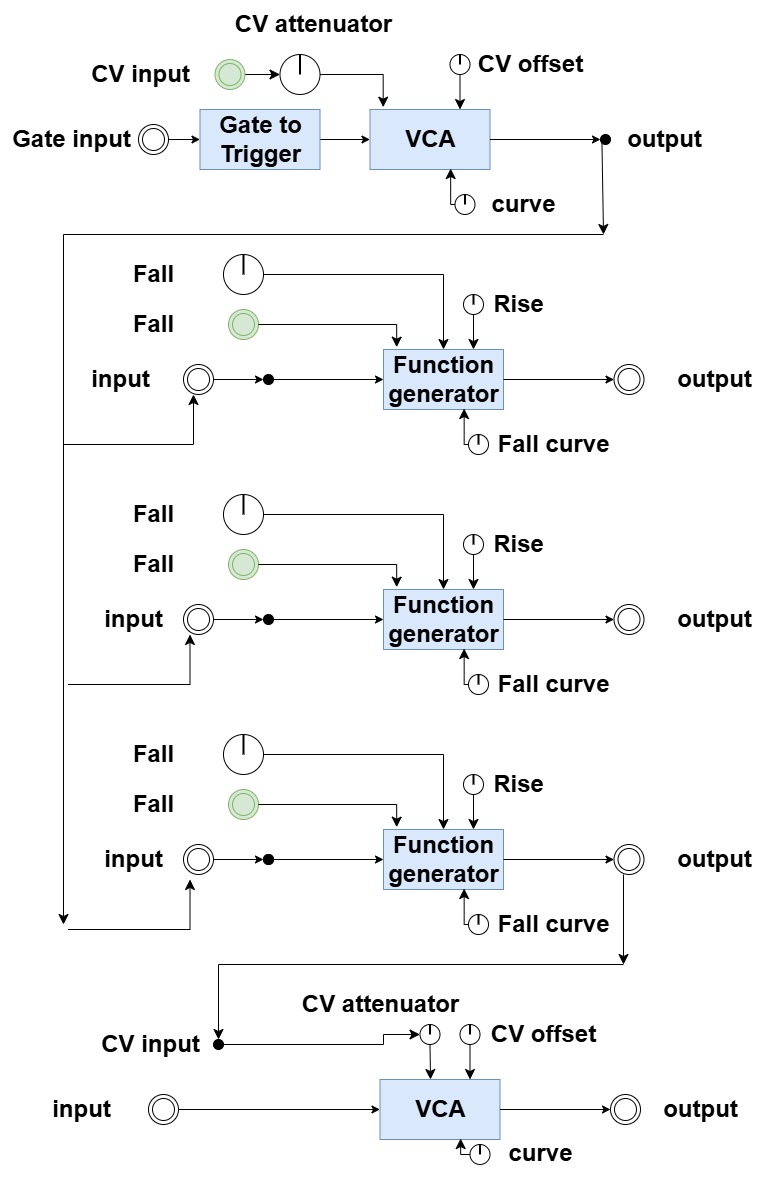

Velocity sensitive triple FG (VC slew), VCA.
We can make transition from kick to hihat drum sound.
Gate input is processed with Gate-to-trigger and VCA for velocity.
Velocity is controllable by CV and knob.
Triple fall slope is controllable by CV and knob.
Triple FG (VC slew) curve is adjustable by trimmer on back side.
Channel 3 FG (VC Slew) output is normalized to CV input of VCA for (mainly) audio signal.
