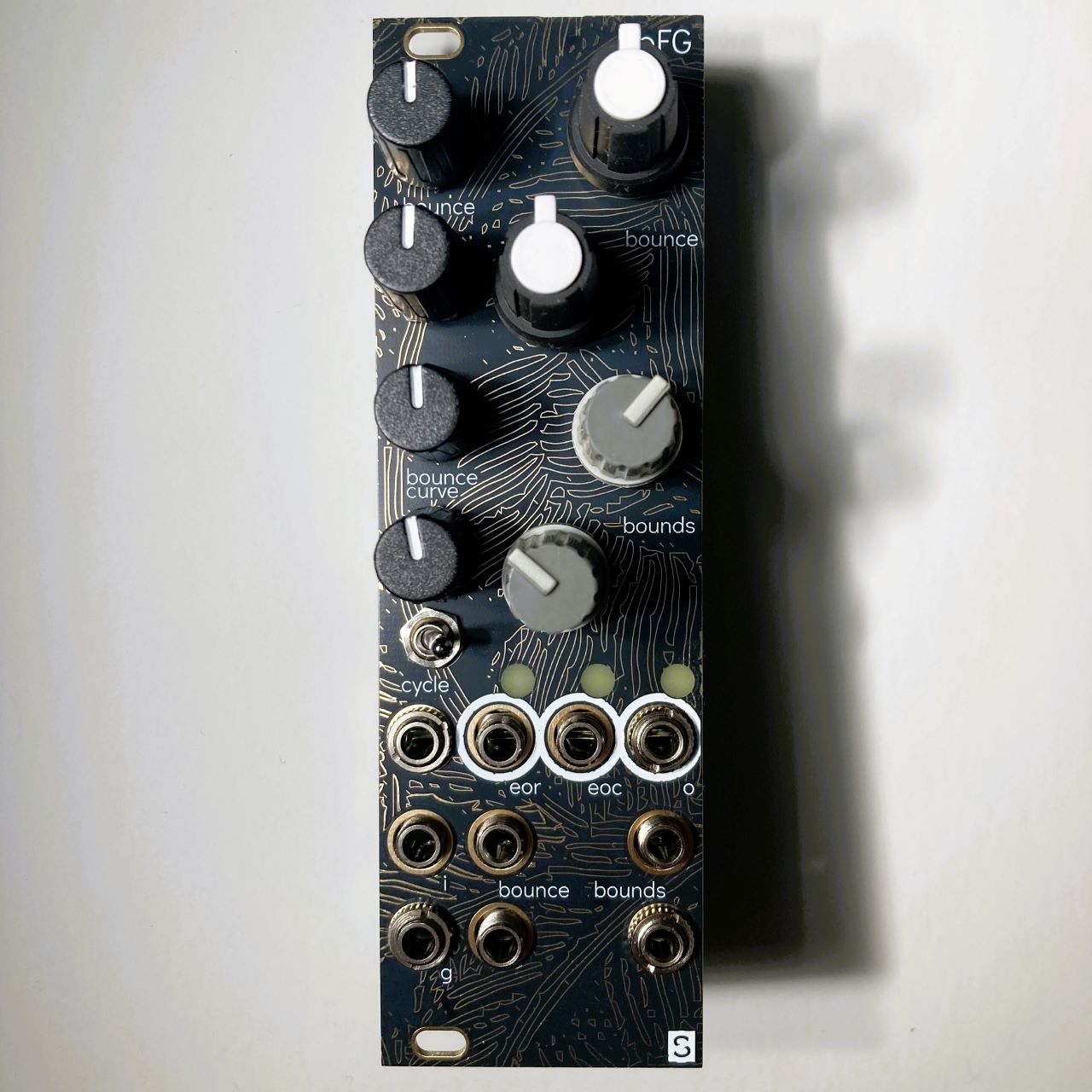

bbFG

Eurorack 3U 8HP

Curve adjustable bounds bounce oscillator / function generator

Demo and Pre-order at Festival of Modular 2024 Tokyo 2024.11.16(Sat)-17(Sun) @ B1FLAT

Demo and Pre-order at Festival of Modular 2024 Osaka 2024.11.24(Sun) @ NOON+Cafe

Depth : 30mm

Power rails: +12V, -12V

Power consumption: 20mA, 20mA


Inspired from legendary Ieaskul F. Mobenthey Swoop.

Curve adjustable bounds bounce oscillator.

You can use as function generator if plug jack to input.

Rise and Fall slope are controllable by CV and knob.

Rise and Fall curve are controllable by knob.

Top and Bottom bounce are controllable by CV and knob.

Cycle is controllable by Gate signal and switch.


Notes:

If the Top and Bottom bounds voltages is too near, the oscillator stops oscillation.

The Top and Bottom bounds voltages are slightly different to the output voltage.
